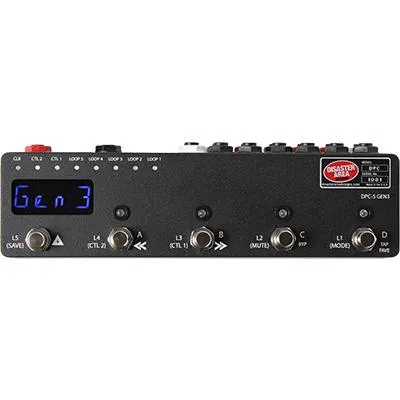

The DPC-5 is a compact MIDI controller and loop switcher. It's designed to control a mix of MIDI and non-MIDI pedals in your rig, allowing you to craft presets that you can engage instantly when you need them. A single tap on your DPC-5 can turn up to five non-MIDI pedals on or off, send tap tempo to a delay or other device, change the channel on your amplifier, and switch programs on up to four MIDI devices. That's a lot of power in a small footprint!

If you have one MIDI device, the DPC-5 Gen3 can simplify selecting programs, send it expression or tap tempo, or even keep it locked in to a MIDI clock. We can also control the loop recorder / looper on several popular devices such as the Strymon Timeline, Eventide H9, and Line 6 M9 / M13. Unlike the DMC-3XL and DMC-4 Gen3, the looper mode doesnÕt occupy one of the device slots, so you can still get full control even with the looper mode enabled.

As helpful as the DPC-5 Gen3 is for single device users, it really shines when used with multiple pedals. Instead of scrolling around on each device to select a program for your next song, the DMC can send simultaneous commands to all of your pedals to select the exact patches you want with a single tap! Using our Preset Mode, changing sounds on all of your MIDI pedals is as easy as changing the channel on your TV remote. The DPC-5Gen3 can control up to four separate devices.

And by adding our new Clock Mode, we've taken pedalboard control to a new level! You can select your tempo by BPM, or tap in a new tempo any time. The DPC-5 Gen3 allows for a global tempo that you can tap in at any time, or preset tempos that change along with your MIDI programs. You can even configure the MultiJack to send taps to your non-MIDI devices with tap tempo inputs.

Features:

• Sturdy cast aluminum enclosure
• Enclosure Dimensions 10_ x 2.5_ x 2.0_
• Soft-touch footswitches
• Blue LED display with 10 brightness levels

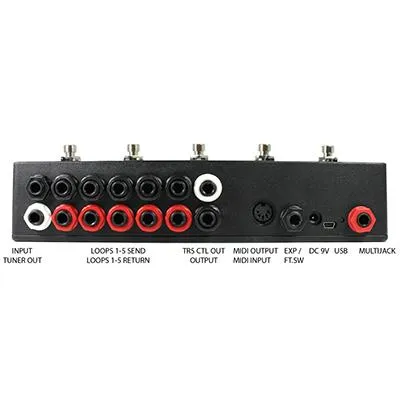

• 5-pin MIDI port, doubles as MIDI input using the Disaster Area MIDI Y-Cable
• 9vDC power jack, 100mA max (up to 500mA if powering a USB device as host)
• USB port with USB-MIDI functionality or USB Host compatibility
• Five effects loops with optional noise-cancelling mute circuitry
• High-quality bypassable buffer allows Loop 1 to be used even for impedance-sensitive devices like vintage fuzzes
• Isolated TRS ouputs for amplifier or remote switching
• Always-on tuner output jack with mute capability
• 1/4_ jack for expression pedal or tap tempo switch
• MultiJack functions as expression pedal input, tap tempo input, tap tempo output, or MIDI output with
• Disaster Area TRS to MIDI Adaptor Cable, control an Empress or Chase Bliss device with the MultiJack Cable for Chase Bliss Audio
